Magnum Standard
Universal Flowmeter for pipes 3" to 120"
MSR Magmeter , Edmonton, Canada
Toll free (US and Canada) 1 877 999 2171
Tel: 780 662 2171 Fax: 780 662 2146

© MSR Magmeter
The Magnum flowmeter is used in applications ranging from water to fish-plant effluent, to mining slurry. The only criteria for its use are that the liquid measured be conductive and that the pipes ranging from size 3" up to 120"* are completey filled.

Each Magnum is application independent. This means that the Magnum can, if necessary, be moved between different pipe sizes and even different liquids simply by changing a few parameters in the Magio 3 setup software. It also means that we always have Magnums in stock and ready to ship.

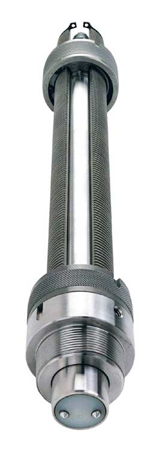

This picture shows the sensor of the Magnum flowmeter with it's universal mounting mechanism This can be used to insert and retract the sensor even under full line pressure. The transmitter beside it houses the electronics and the display and can be mounted up to 150 ft* away from the measurement location.

* x-long model is required for pipe sizes over 50"
* standard length of cable supplied is 30 ft cable
