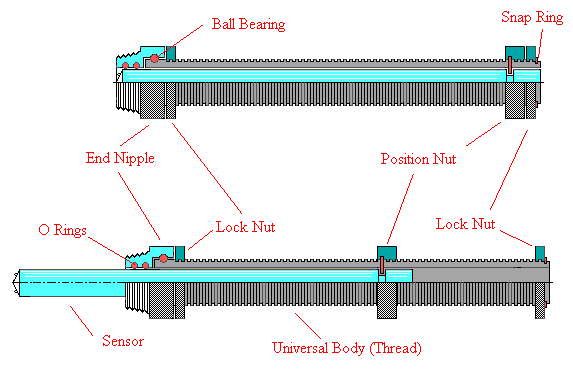

| This diagram shows the individual parts of the Magnum Universal Mounting
Unit. It is particularly important to note that, while installing the flowmeter,
the lock nuts be loosened (moved some distance away) from the End Nipple
and Position Nut. Otherwise both could lock up and make moving or turning
of the sensor difficult or damage the thread of the Universal.
The Locking Nuts should only be used once the sensor is in its proper
operating position for the given application. |
 |
