MSR Magmeter
External Totalizer
An additional external totalizer can be added to the Magnum, utilizingthe pulse output of the flowmeter.

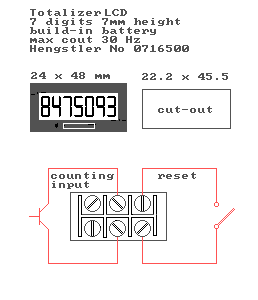

We have found the model below to be most practical.

For Information call Toll Free: 1 877 999 2171

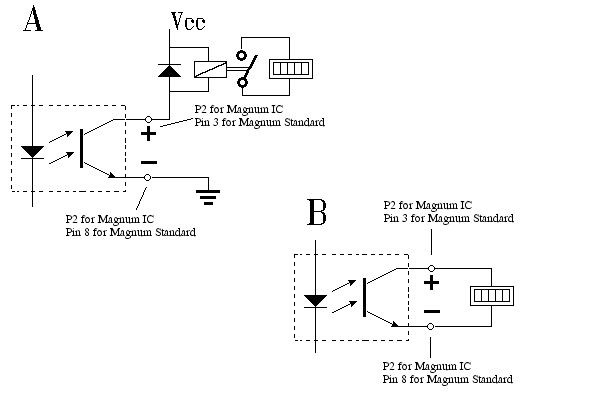

The Magnum series supplies an opticouplerpulse output. It can be connected in either of these two ways:

Method A: A dry contact for mechanical external totalizer. The DC relay is energized by an external DC power source. The contact ofthe relay is connected to the input of the external totalizer

Method B: Connection to electronic external totalizer. The pulse output of the Magnum or magnum IC can be directly connected to theinput of the external totalizer. If necessary a resistor may be connectedto tie the positive side of the external totalizer to the DC voltage supplyof the external totalizer.
